Encryption Introduction
Encryption is an advanced feature for securely hiding a secret. However, if used incorrectly, the secret may become unrecoverable without a separate plain-text backup. Before using it, carefully review this document and pay close attention to all warnings.
In General¶
In Settings -> Encryption Settings, you can adjust PBKDF2 Iterations and Encryption Mode before loading a wallet. When encrypting, Krux applies these preferences to optimize for the specific secret being secured, producing an encrypted KEF envelope that can be exported as a QR or saved to SD.
During encryption, users may be prompted to override their preferences or select a specific version. Most importantly: the encryption key MUST be strong. If a KEF envelope is created with a weak key and shared or exposed, it should be assumed to offer NO protection, and the secret will be leaked.

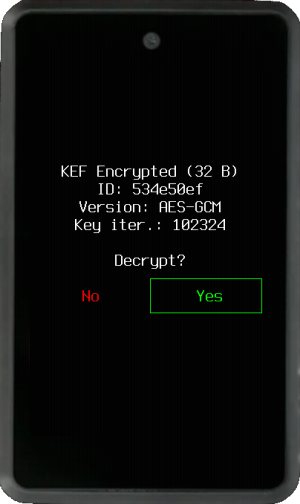

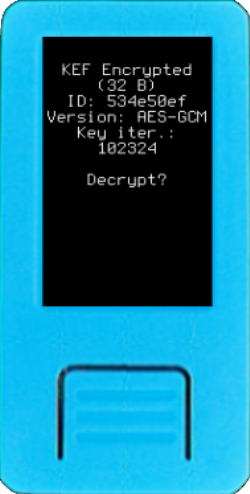

When Krux detects data resembling a KEF-encrypted envelope, it prompts the user to "Decrypt?", showing the KEF version, envelope ID (or label), and the PBKDF2 iteration count used during creation. To decrypt, the same key (typed or scanned) must be provided. Once unlocked, Krux uses the plaintext within context. If decryption is declined, the raw envelope is used instead—usually resulting in an error, since KEF data is meaningless without decryption.
KEF envelopes are deliberately opaque, providing no information about their contents or the key needed for decryption. It is the user’s responsibility to track this—by noting what each envelope contains, how to decrypt it, and assigning an ID at encryption to help recall its contents and locate the correct key. During encryption, Krux suggests an ID that the user can modify. For mnemonics, the default ID is the wallet fingerprint without a passphrase; for wallet output descriptors, it defaults to the wallet’s generic policy.
Within the Tools menu, users may experiment with Datum tool for encrypting small to mid-sized contents (less than 50K bytes) and for decrypting KEF envelopes.
Regarding BIP39 Mnemonics¶
There are several ways to add security layers to a wallet’s private key. The most common is adding a BIP39 passphrase to the mnemonic. Encrypting a BIP39 mnemonic serves a similar purpose, but differs in a key way: with BIP39 passphrases, entering the wrong passphrase loads a different wallet, while with Krux’s encrypted mnemonics, a wrong key simply returns an error. Depending on the use case, this behavior may be preferable. Krux’s implementation also stores a mnemonic ID alongside the data for convenience. Encrypted mnemonics can be combined with a BIP39 passphrase for added security, and the same mnemonic can be encrypted with multiple different keys.
AES Modes-of-Operation¶
Krux uses standard AES encryption with modes-of-operation: ECB, CBC, CTR and GCM. The user may set their preference within Settings, Encryption Settings, Encryption Mode. Krux uses GCM as the default mode-of-operation, but you may have valid reasons for making your own choice, ie:
- maybe you want compatibility with other software or devices you use,
- maybe you want the smallest QR possible for high-entropy secrets like mnemonics or passhprases,
- etc.
AES-ECB¶
ECB (Electronic Codebook) is a simpler method where data blocks are encrypted individually. This mode is faster and simpler to encrypt, resulting in QR codes with lower density that are easier to transcribe. It is generally considered less secure than others because it does not provide data chaining, meaning identical plaintext blocks would produce identical ciphertext blocks, making it vulnerable to pattern analysis. However, in Krux's implementation, encrypting plaintext via ECB which contains duplicate blocks has been intentionally disabled.
AES-CBC¶
CBC (Cipher-block Chaining) is considered more secure than ECB. In the first data block, an initialization vector (IV) is used to add random data to the encryption. The encryption of subsequent blocks depends on the data from previous blocks, characterizing chaining. Tradeoffs are that encryption/decryption must be done in series and when encrypting, a camera snapshot will be needed to generate the IV, so it's a slower process. The IV will always stored together with encrypted data, making encrypted QR codes denser and harder to transcribe. This mode is often available on other microcontroller devices.
AES-CTR¶
CTR (Counter Mode) like CBC is more secure than ECB, because of the use of an Initialization Vector, and also most efficient as a stream cipher, capable of encrypting and decrypting in parallel. This mode is often available on other microcontroller devices.
AES-GCM¶
GCM (Galois Counter-Mode). Similar to CBC and CTR, the cipher is initialized with a nonce from a camera snapshot. Like CTR, it is a paralellizable stream cipher, and also adds Galois Field authentication inherently. Capable of optimized performance, with built-in authentication and ease of implementation, this mode is the Krux default unless the user has selected otherwise.
Initialization Vector¶
Modes ECB, CBC, and GCM use an Initialization Vector (IV), where IV is better termed nonce for GCM. The IV will be generated from a snapshot taken with the camera. It is a fixed-size input value used to initialize the cipher, adding randomness to the encryption, and ensuring that data encrypted with the same key will produce different ciphertexts each time. The IV, or nonce, is not secret and will be transmitted along with the ciphertext. However, like any nonce, it should not be reused to maintain security.
Key Stretching (PBKDF2 Iterations)¶
When you enter the encryption key, it is not directly used to encrypt your data. In order to protect against brute force attacks, the user supplied key is derived multiple times - stretched to 256 bits via pbkdf2_hmac_sha256. PBKDF2 (Password-Based Key Derivation Function) Iterations refer to the number of derivations that will be performed over your key - as the password - salted with an ID, prior to encrypting/decrypting your secret. Users may set a preferred PBKDF2 Iterations value in Encryption Settings, then Krux will propose a slightly different value - within a 10% delta, whenever encrypting.
KEF Encryption Format¶
When Krux encrypts a secret, the result is a KEF Envelope - which is a series of bytes. Each envelope is constructed similarly, containing fixed-length and variable-length fields representing: a custom ID for the envelope, a Version, number of PBKDF2 Iterations, and a Cipher PayLoad, so that any devices or software supporting KEF may recognize the envelope and know how to decrypt it - given the correct key. These fields, within each KEF envelope are:
| ID length (1) | ID (2) | Version (3) | Key Derivations (4) | Cipher PayLoad (5, 6, and 7) |
|---|---|---|---|---|
| 1 Byte | Variable | 1 Byte | 3 Bytes | Variable |
- Visible data (1 to 4):
- (1) Mnemonic ID length (1 Byte).
- (2) Mnemonic ID (variable length): Custom
ID(wallet fingerprint for mnemonics). - (3) Version (1 Byte): Version of encryption method; currently twelve are available -- details later.
- (4) key derivation Iterations (3 bytes): Number of PBKDF2 key derivations. if <= 10,000, multiplied by 10,000.
- Cipher PayLoad (5, 6, and 7):
- (5) IV (12 or 16 bytes, optional): Initialization Vector for modes: CBC or CTR, and nonce for GCM.
- (6) Encrypted Ciphertext.
- (7) Authentication/validation data (3, 4, or 16 bytes).
Version Details¶
While all KEF envelopes share the above format, each version differs - offering choices to the user, as trade-offs that may better fit a particular use-case. For technical details, see: KEF specifications
| Version | Name | Mode | IV | Compressed | Intended Use Case |
|---|---|---|---|---|---|
| 0 | AES-ECB v1 | ECB | -- | -- | Legacy (<= v25.03.0): mnemonic entropy |
| 1 | AES-CBC v1 | CBC | 16 | -- | Legacy (<= v25.03.0): mnemonic entropy |
| 5 | AES-ECB | ECB | -- | -- | Smallest QR; mnemonic, passphrase |
| 6 | AES-ECB +p | ECB | -- | -- | General Mid-sized |
| 7 | AES-ECB +c | ECB | -- | Yes | Large; repetitive text |
| 10 | AES-CBC | CBC | 16 | -- | Small, high-entropy |
| 11 | AES-CBC +p | CBC | 16 | -- | General mid-sized |
| 12 | AES-CBC +c | CBC | 16 | Yes | General large |
| 15 | AES-CTR | CTR | 12 | -- | General mid-sized |
| 16 | AES-CTR +c | CTR | 12 | Yes | General large |
| 20 | AES-GCM | GCM | 12 | -- | Default; General mid-sized |
| 21 | AES-GCM +c | GCM | 12 | Yes | Default; General large |
Considerations¶
Storage of encrypted secrets on the device or SD cards are meant for convenience only and should not be considered a long-term form of backup. Always make a physical backup of your keys that is independent from electronic devices and test recovering your wallet from this backup before you send funds to it. Flash storage can degrade over time and may be subject to permanent damage, resulting in the loss of stored information.
Remember that any encrypted secret is protected by the key you defined to encrypt it. If the defined key is weak, your encrypted mnemonic and other secrets will not be protected. If you have stored sensitive secrets in the device's internal flash memory using a weak key, the best way to undo this is to erase user's data.
